Level Shifter

• The proposed level shifter, named the diode-connected cross coupled pFET level shifter with staked split-input inverter (DCPLS-SSI) is a wide-range voltage conversion and energy-efficient solution for DRAM voltage conversion in 28 nm CMOS technology. The proposed level shifter can mitigate the current contention by using diode-connected cross coupled pFET structure, which enables wide-range voltage conversion. In addition, the stacked split-input inverter can reduce the short-circuit current of output inverter, which enable energy-efficient operation.

Feature
· • Area: 2.37um2
· • Delay: 1.79ns
· • Energy per transition: 8.08fJ
· • Static power: 0.35nW
· • Voltage conversion range: 0.227V to 1.2V @1MHz
Application
· • Data voltage conversion in DRAM
Business Area
DRAM memory system
Category

Verification IP > Memory > Dram


Tech Specs
  • IP Name :

    Level Shifter

  • Provider :

    정성욱 교수님, 고동한

  • Foundry :

    SAMSUNG

  • Technology :

    28nm

Deliverables
· Schematic netlist & GDS
Validation Status
· Chip measured
Availability
1Ynm DRAM technology

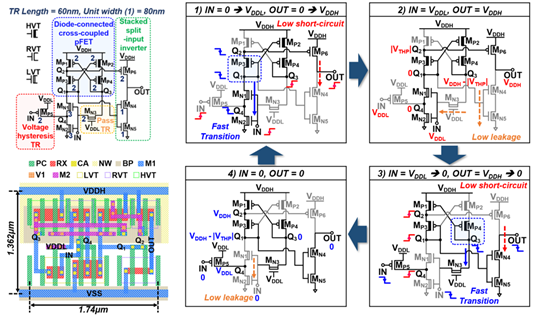

Functional Diagram
Benefits
·
