Feature

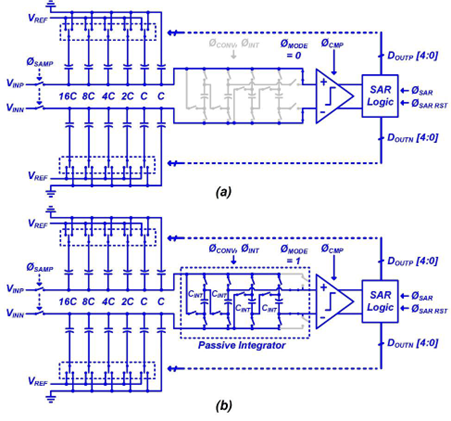

· • Bandwidth and Resolution Reconfigurable NS-SAR ADC with 200 MHz sampling rate
·
– Supports mode switching between SAR (5-bit, BW: 100 MHz) and NS-SAR (8-bit, BW: 8 MHz)
·
• Reconfigurable Noise-Shaping Integrator
·
– Mode-selectable passive integration for first-order noise shaping with NTF of 1−0.8z⁻¹
·
• High-Speed Operation with Energy Efficiency
·
– 200 MS/s sampling clock with 5-bit CDAC in both modes
·
– Set-and-down switching scheme for reduced switching energy
·
• Compact and Scalable SAR ADC Architecture
·
– 5-bit metal-oxide-metal (MOM) CDAC, dynamic comparator, bootstrapped input switch
·
• Dynamic Performances
·
– SNDR/SFDR: 31 dB / 42.5 dB (SAR), 50 dB / 50.7 dB (NS-SAR)
·
• Optimized for PIM Systems
·
– Suitable for both inference and training modes with a single ADC core
·
• Area and Power Efficiency
·
– Core area: 0.0035 mm² in 28 nm CMOS
·
– Total power: 183.2 µW (84 µW for ADC, 99.2 µW for control logic)
Application
· Process-In-Memory Application (ex. Output interface between analog computing-based CNN layer and dig
Business Area
Automotive Radar or LiDAR system, Memory system
Deliverables
· Schematic netlist & layout & testbench
